China Manufacturer Supply Competitive Coriolis Mass Flow Meter with Low Price

Feature:
1.There are common type and anti-corrosion type
2.Movable flange connection and easy installation and maintenance
3.Unique explosion-proof glass protective mask and Higher safety factor
4.Can be applied to chemical and other special fields

Send Inquiry

Chat Now
Parameter

China Manufacturer Supply Competitive Coriolis Mass Flow meter with low price

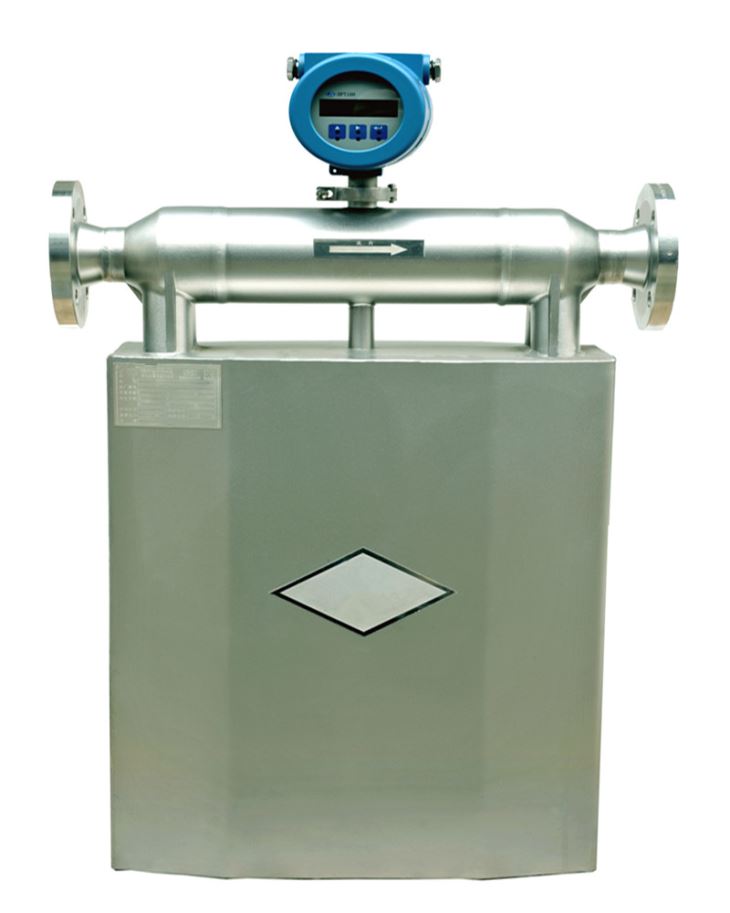

 Sensor(DN50-Compact Installation).jpg

Feature:

1.There are common type and anti-corrosion type

2.Movable flange connection

3.easy installation and maintenance

4.Unique explosion-proof glass protective mask

5.Can be applied to chemical and other special fields

6.Higher safety factor

Technical Parameter:

Coriolis Mass Diesel Flow Meter Technical parameter

    Model

Max mass
flow rate
      kg/h

Max volume flow  rate
        l/h

Zero point

stability (kg/h)



Temperature influence
%FS/℃

pressure
influence
 % flow data/MPa

       P10

      1500

         1500

       0.10

   0.0001875

      -

       P15

      4500

          4500

       0.30

   0.0001875

      -

       P20

      9450

          9450

       0.63

   0.0001875

      -

       P25

      25500

         25500

       1.70

   0.0001875

  -0.03

       P50

      94500

         94500

       6.30

    0.00075

  -0.11

       P80

      240000

        240000

       16.0

    0.00075

  -0.25

      P100

      540000

        540000

        36.0

    0.001125

  -0.58

      P150

     825000

       825000

        55.0

     0.0040

  -0.36

      P200

   1650000

      1650000

      110.0

    0.00025

  -0.20

      P250

   2700000

      2700000

     180.0

      0.00025

  -0.14

Accuracy:DPT100 ±0.1%

Range ratio:15:1



Application:

1.It is widely applied in Chemical Industry

2.Oil,Medicine,light industry also used it

3.Food industry,Dye industry,paper making and research department has applied.

Packing and Delivery:


Packing:Standard export package: each unit has individual box and all boxes are packed

in standard packages.

Delivery:Products are shipped from china within 15 working days after payment was

received by DHL, EMS and TNT.

It usually takes 3-5 working days for delivery (depending on the final destination).


Cooperation Company:


FAQ:

Q:How about the quality of the magnets?

A:We have the certification of ISO,CE and ROSH,we could send the certification

test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure

sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our

best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and

arrange to produce immediately.



Contact us:

Company Name:Xi'an CAMON Automatic Instrument Co.,Ltd

Contact Person:TangTang

Mobile Phone:+8615389295434

Tel:029-88243812

Fax:029-88241170

Post Code:710065


If you're interested in the china manufacturer supply competitive coriolis mass flow meter with low price, welcome to wholesale the discount product with cheap price from our factory. It's of high accuracy and long durability. And as one of the leading manufacturers and suppliers, we also offer the customized service for you.
