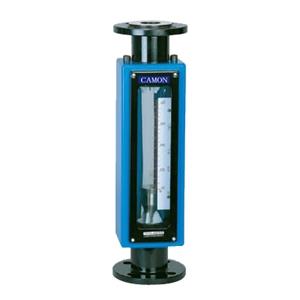

Chemical Gas Rotary Flow Meter

Chemical gas rotary flow meter CMGA24 is designed for special working environment,especially for chemical industries.

Download

Send Inquiry

Chat Now

Parameter

Chemical Gas Rotary Flow Meter

Chemical gas rotary flow meter CMGA24 series is equipped with explosion-proof glass shield which is designed for special working environment,especially for chemical industries. Conveniently replace cone and float without dismounting from pipe. Standard type and non-corrosive type for option. Multi mounting methods for choice includes flange mounting.

Measuring Range	water: 20℃,4~36000L/h
Measuring Range	air: 1.013×10⁵Pa, 20℃,0.12~1000m³/h
Rangebility	10:1
Accuracy Grade	class 1.0, class 1.6
Cone	length: 300mm scale: DN15~50 NG60: millimeter scale & flow scale FG60: percentile scale & flow scale
Type of Float	NG60: All FG60: Clll,Dlll,ClllL,DlllL,Zlll
Liquid	max.pressur DN15~25: 1.0MPa DN40:0.9 MPa DN50:0.7MPa DN80:0.5MPa
	media temperature: -5~+120℃
	environment temperature: -20~+100℃ / -20~+65℃

CONE:NG60 / Float Alll

ND (mm)	Model	Measuring Range(L/h)		Pressure Lose (Pa)
		Water(℃)	Air(1.013×10⁵Pa, 20℃,m³/h)
15	CMGA24-15	4~40 6.3~63 10~100 16~160 25~250 40~400 63~630	0.12~1.2 0.2~2 0.3~3 0.5~5 0.8~8 1.2~12 2~20	1000 1100 1200 1700 2000 2500 3000
	CMGA24-15F
25	CMGA24-25	63~630 100~1000 160~1600 250~2500	2~20 3~30 5~50 6~60	2800 4000 5000 6000
	CMGA24-25F
40	CMGA24-40	160~1600 250~2500 400~4000	5~50 8~80 12~120	3400 4000 5000
	CMGA24-40F
50	CMGA24-50	400~4000 630~6300 1000~10000	12~120 20~200 30~300	4800 6500 8500
	CMGA24-50F
80	CMGA24-80	1600~16000 2500~25000 3600~36000	40~400 60~600 100~1000	8000 9000 9600
	CMGA24-80F

CONE:FG60 / Float CIII,DIII,CIIIL,DIIIL,ZIII

ND (mm)	Model	Measuring Range(L/h)
		Water(℃)					Air(1.013×10⁵Pa, 20℃,m³/h)
		Clll	Dlll	ClllL	DlllL	Zlll	Dlll	DlllL
15	CMGA24-15	16~160 25~250 40~400	20~200 30~300 46~460	10~100 16~160 25~250	12~120 19~190 30~300	19~190 36~360 65~650	0.6~6 0.9~9 1.3~13	0.4~4 0.6~6 0.9~9
	CMGA24-15F
25	CMGA24-25	63~630 100~1000 160~1600	80~800 120~1200 200~2000	40~400 63~630 100~1000	50~500 80~800 120~1200	100~1000 170~1700 300~3000	2.2~22 3.8~38 6~60	1.6~16 2.5~25 4~40
	CMGA24-25F
40	CMGA24-40	250~2500	300~3000	160~1600	200~2000	500~5000	9~90	6~60
	CMGA24-40F
50	CMGA24-50	400~4000 630~6300	500~5000 800~8000	250~2500 400~4000	300~3000 500~5000	800~8000 1500~15000	15~150 22~220	10~100 6~160
	CMGA24-50F

If you're interested in the chemical gas rotary flow meter, welcome to wholesale the discount product with cheap price from our factory. It's of high accuracy and long durability. And as one of the leading manufacturers and suppliers, we also offer the customized service for you.
