Home > Product > Flow Meter > Glass Rotameter Flow

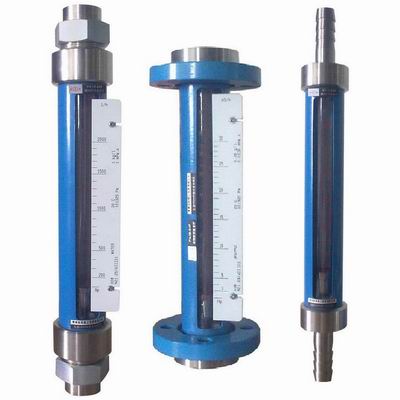

China Manufacturer Supply VA/SA/FA High Quality Discount Air or Water Flow Measurement

China Manufacturer Supply VA/SA/FA High Quality discount Air or water flow measurement Feature:
1.There are common type and anti-corrosion type
2.Movable flange connection
3.easy installation and maintenance
4.Unique explosion-proof glass protective mask
5.Can be applied to chemical and other

Send Inquiry

Chat Now

Parameter

China Manufacturer Supply VA/SA/FA High Quality discount Air or water flow measurement

Feature:

1.There are common type and anti-corrosion type

2.Movable flange connection

3.easy installation and maintenance

4.Unique explosion-proof glass protective mask

5.Can be applied to chemical and other special fields

6.Higher safety factor

Technical Parameter:

Accuracy

1.0/1.6

Range Ratio

10:1

Medium Temperature

-5-+120℃

Max Pressure

(MPa)

DN15,DN25:1.0;

DN40:0.9DN50:0.7,

DN80:0.5

Environment Temperature

-20-+100℃

-20-+65℃

Specification and Model :

Nominal diameter mm	Model	Measuring Range		Pressure loss (Pa)
Nominal diameter mm	Model	water(20℃)L/h	Air(1.013*105Pa,20℃) m3/h	Pressure loss (Pa)
15	VA10-15 VA10-15F	4-40	0.12-1.2	1000
		6.3-63	0.2-2	1100
		10-100	0.3-3	1200
		16-160	0.5-5	1700
		25-250	0.8-8	2000
		40-400	1.2-12	2500
		63-630	2-20	3000
25	VA10-25 VA10-25F	63-630	2-20	2800
		100-100	3-30	4000
		160-1600	5-50	5000
		250-2500	6-60	6000
40	VA10-40 VA10-40F	160-1600	5-50	3400
		250-2500	8-80	4000
		400-4000	12-120	5000
50	VA10-50 VA10-50F	400-4000	12-120	4800
		630-6300	20-200	6500
		1000-10000	30-300	8500

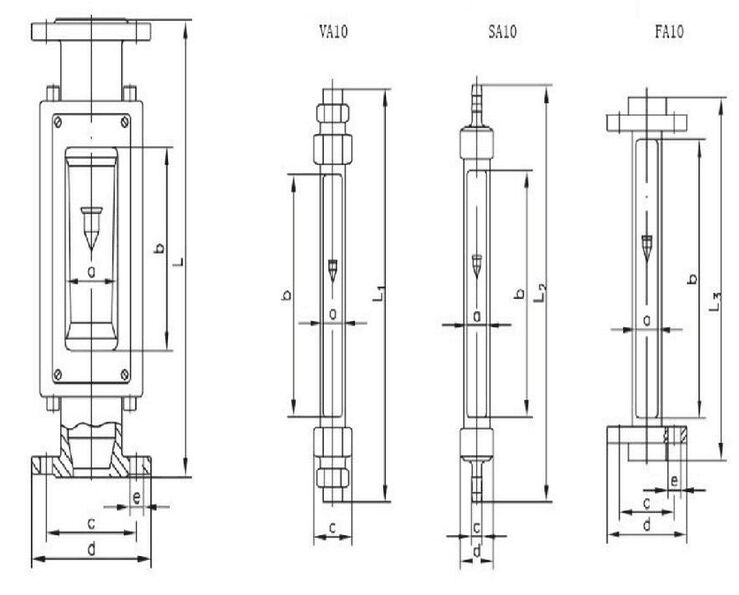

VA SA FA Rotameter.jpg

Application:

1.It is widely applied in Chemical Industry

2.Oil,Medicine,light industry also used it

3.Food industry,Dye industry,paper making and research department has applied.

Packing and Delivery:

Packing:Standard export package: each unit has individual box and all boxes are packed

in standard packages.

Delivery:Products are shipped from china within 15 working days after payment was

received by DHL, EMS and TNT.

It usually takes 3-5 working days for delivery (depending on the final destination).

Cooperation Company:

VA customer.jpg

FAQ:

Q:How about the quality of the magnets?

A:We have the certification of ISO,CE and ROSH,we could send the certification test

of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure

sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best

to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange

to produce immediately.

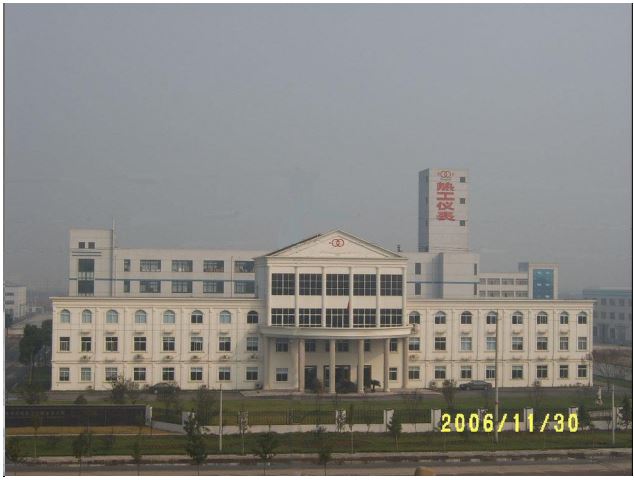

factory .jpg
