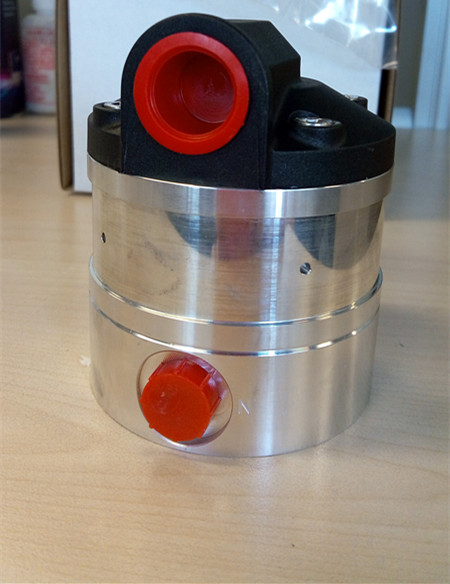

Chinese Factory Selling Discount Customsized Heavy Oil Diesel Fuel Oval Gear Flow Meter

Feature:
1.Electrical impulses signal transmitter
2.No spark, fearless of oil, grease and dust, small measurement and convenient installation
3.The solid testing signals can be got without contact
4.The solid testing signals can be got without contact

Send Inquiry

Chat Now
Parameter

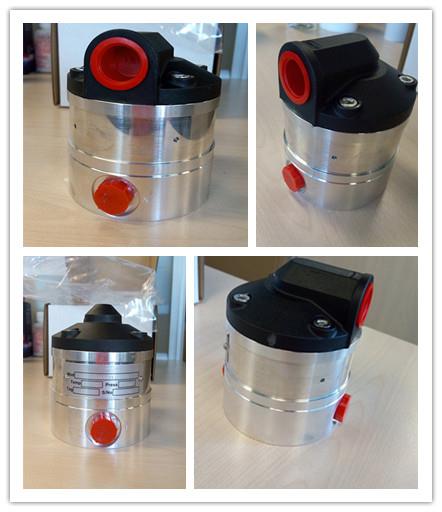

Chinese Factory selling discount Customized Heavy Oil Diesel Fuel Oval Gear Flow meter

Kumar 椭圆齿轮流量计.jpg

Feature:

1.Electrical impulses signal transmitter

2.Permanent magnet disk on the counter

3.No spark, fearless of oil, grease and dust, small measurement and convenient installation

4.The solid testing signals can be got without contact

5.Long life, strong capacity of anti interference, and wide working frequency


Technical Parameter:

Model

OM series

Nominal size

3/8"[8mm]

*Nominal Flow range @ 3cP

15-550 L/hr

[4-145 USG/hr]

              Ouput Pulse Resolution - Pulse per Liter [Pluse per USG]-Nomial

Reed Switch

355[1,345]

Hall Effect

710 [2,690]

QP Quadrature Hall Effect

710 [2,690]

Reed Switch Outputs

n/a

Hall Effect Output

3 wire open collector. 5-24Vdc max.,20mA

Optional Outputs

4-20mA,scaled pulse quadrature pulse,flow alarms or two

staqe batch control

Accuracy

±1% of reading(±0.2% of reading with optional RT14)

Repeatability

Typically ±0.03% of reading

Ambient Temperature Range

-40℃-120 ℃ [-40℉-250℉]

Max. Pressure (Al meters)

15 Bar [220 psi]

 Max. Pressure (SS meters)

 34 Bar [495 psi]

 Protection Class

 IP66/67 (instrinsically safe)

Recommand filtration

200 meshes (75 microns)

Application:

1.Flow of general conducting fluid;

2.It can also be used acid, alkali and other corrosive gases and mud;

3.Pulp, paper pulp and other liquid-solid two-phase liquid-rich-hyun;

4.Petroleum, chemical, metallurgy, power generation, paper and other industrial and

municipal administration;

5.Flow measurement and other areas of water conservancy construction.



Packing and Delivery:


Packing:Standard export package: each unit has individual box and all boxes are

packed in standard packages.

Delivery:Products are shipped from china within 15 working days after payment was

received by DHL, EMS and TNT.

It usually takes 3-5 working days for delivery (depending on the final destination).



Cooperation Company:


FAQ:

Q:How about the quality of the magnets?

A:We have the certification of ISO,CE and ROSH,we could send the certification

 test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure

sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best

to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt

and arrange to produce immediately.


If you're interested in the chinese factory selling discount customsized heavy oil diesel fuel oval gear flow meter, welcome to wholesale the discount product with cheap price from our factory. It's of high accuracy and long durability. And as one of the leading manufacturers and suppliers, we also offer the customized service for you.
