Oxygen Tank Flow Meter

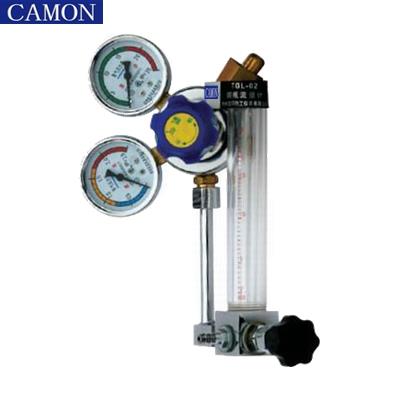

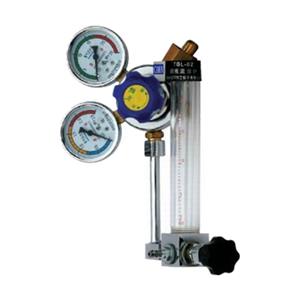

Oxygen tank flow meter is formed by decompressor and glass rotameter to simultaneously indicate value of pressure and flow.

Download

Send Inquiry

Chat Now

Parameter

Oxygen Tank Flow Meter

Oxygen tank flow meter is formed by decompressor and glass rotameter. Through decompressor and rotameter’s regulation function, steel cylinder can output gas under constant flow and pressure. Simultaneously, the meter can indicate value of pressure and flow. The rotameter is widely applied in measuring and controlling of flow of nitrogen, oxygen and hydrogen,etc. in steel cylinder.

ND (mm)	Model	Gas Type	Measuring Range (L/min)	Accuracy	Dimension
ND (mm)	Model	Gas Type	Measuring Range (L/min)	Accuracy	Outlet Pressure (MPa)	Inlet Pressure (MPa)	Temperature (℃)
3	CMTGL-01-H-3	H₂	0.1~1,0.2~2 0.3~3,0.4~4	4	0.2	0.5~5	0~60
4	CMTGL-01-H-4		0~6,1~10 1.5~15	4
6	CMTGL-01-H-6		2~20,3~30	2.5
10	CMTGL-02-H-10		4~40,6~60 9~90	2.5
4	CMTGL-01-N-4	N₂	0.2~2,0.3~3 0.4~4	4
6	CMTGL-01-N-6		0.6~6,0.9~9	2.5
10	CMTGL-01-N-10		1~10,1.6~16 2.5~25	2.5
4	CMTGL-01-Ar-4	Ar	0.1~1,0.2~2 0.3~3	4	0.3
6	CMTGL-01-Ar-6		0.4~4,0.6~6	2.5
10	CMTGL-02-Ar-10		0.7~7,1.1~11 1.8~18	2.5
4	CMTGL-01-O-4	O₂	0.2~2,0.3~3	4
6	CMTGL-01-O-6		0.5~5,0.8~8	2.5
10	CMTGL-02-O-10		2~20	2.5

If you're interested in the oxygen tank flow meter, welcome to wholesale the discount product with cheap price from our factory. It's of high accuracy and long durability. And as one of the leading manufacturers and suppliers, we also offer the customized service for you.
