Chinese Factory Supply Mechanical Metal Tube Flow Meter for Normal or Corrosive Liquid in Stock

Chinese Factory Supply Mechanical Metal Tube Flow Meter for Normal or Corrosive Liquid in Stock

Feature: 1.Strong all metal structure design type rota meter.
2.Measuring tube indicator which adapt the independent concept to design
3.It can select the measurement system of the materials which is made of stainless steel, Hart alloy, Titanium, PTFE.

Send Inquiry

Chat Now
Parameter

Chinese Factory Supply Mechanical Metal tube flow meter for normal or corrosive Liquid in Stock

Feature:

1)Strong all metal structure design type rota meter.

2) Measuring tube indicator which adapt the independent concept to design

3) It can select the measurement system of the materials which is made

of stainless steel, Hart alloy, Titanium, PTFE.

4)Low-pressure loss design.

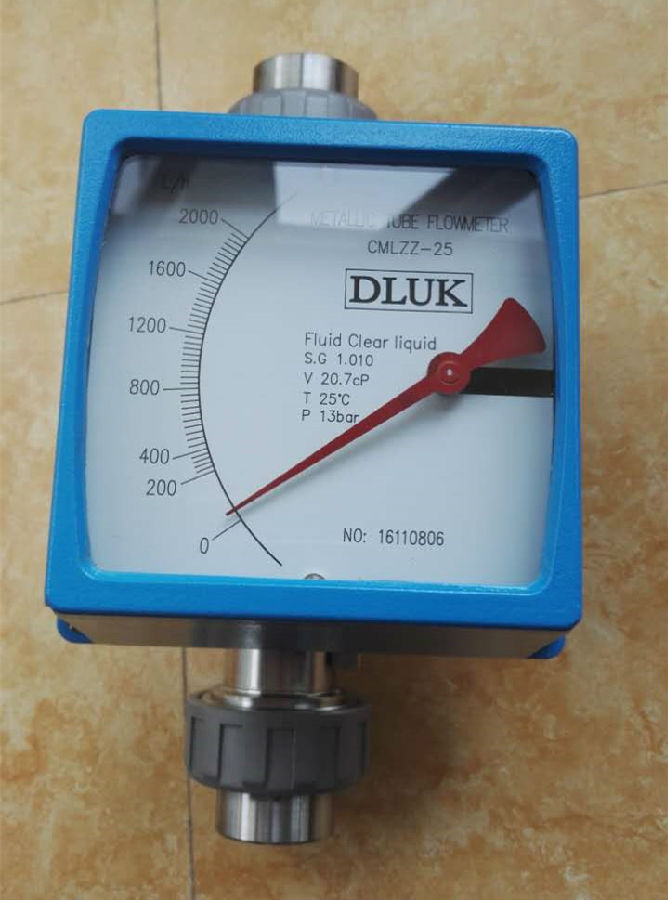

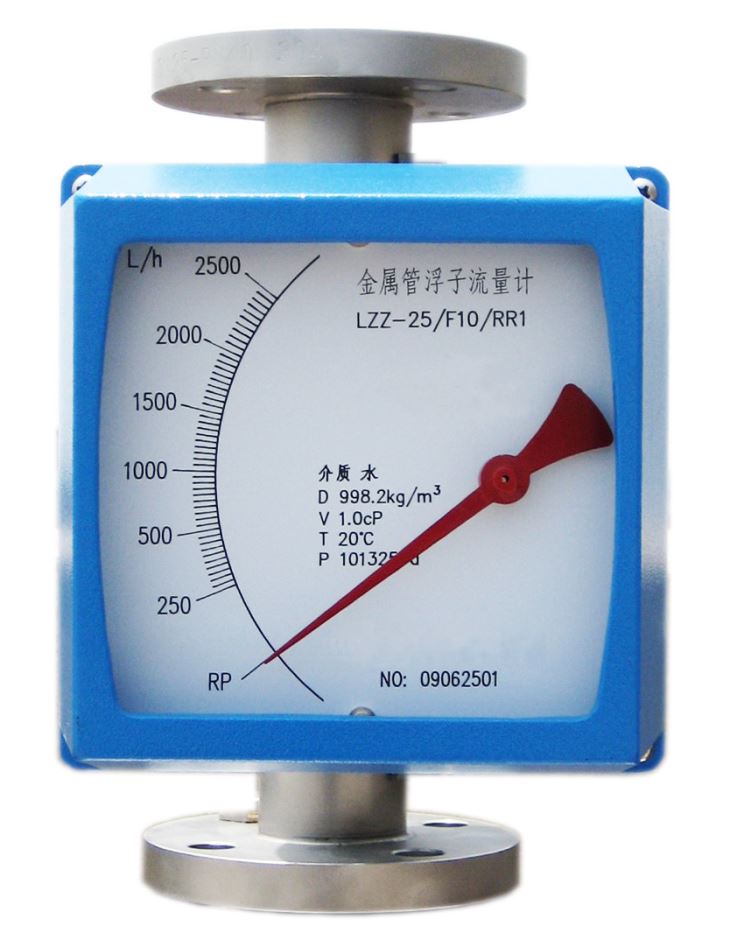

mechanical flowmeter7.jpg

Technical Parameter:

Nominal Diameter

           mm

                     Flow Range

Maximum pressure loss

Water 20℃ L/h

       Air20℃

101325Pam3/h

Water (KPa)

Air (KPa)

        15

        2.5-25

     0.07-0.7

        2.6

    2.1

          4-40

      0.1-1

        2.6

    2.1

          6-60

    0.15-1.5

        2.6

    2.1

       10-100

    0.22-2.2

        2.6

    2.1

       16-160

    0.36-3.6

        2.6

    2.1

        25-250

    0.55-5.5

        2.6

    2.1

        40-400

      1-10

        2.8

    2.2

        60-600

     1.4-14

        3.2

    2.2

         25

        60-600

     1.4-14

        3.3

    2.4

     100-1000

     2.2-22

        3.3

    2.4

    160-1600

     3.5-35

        3.4

    2.5

     250-2500

     5-50

        3.8

    2.6

    400-4000

     8-80

        4.5

      3

         50

    600-6000

     8-80

        4.5

    1.3

  1000-10000

    11-110

        4.7

    1.3

  1600-16000

    15-150

        5.5

    1.3


    18-180


    1.4


    30-300


    1.8

         80

    250-2500

   50-500

        4.6

    1.8

    400-4000

   75-750

        6.5

    1.8

        100

    600-6000


        9.0


    125
 2000-20000
   25.4
    150 3200-32000
   32.0
 3600-36000
   40.0

Application:

Food industry,Dye industry,paper making and research department has applied.


Packing and Delivery:


Packing:Standard export package: each unit has individual box and all boxes

are packed in standard packages.

Delivery:Products are shipped from china within 15 working days after payment

was received by DHL, EMS and TNT.

It usually takes 3-5 working days for delivery (depending on the final destination).



Cooperation Company:


FAQ:

Q:How about the quality of the magnets?

A:We have the certification of ISO,CE and ROSH,we could send the

certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best

quality pressure sensor we can with reasonable price.

Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we

will try our best to satisfy you.

Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the

receipt and arrange to produce immediately.

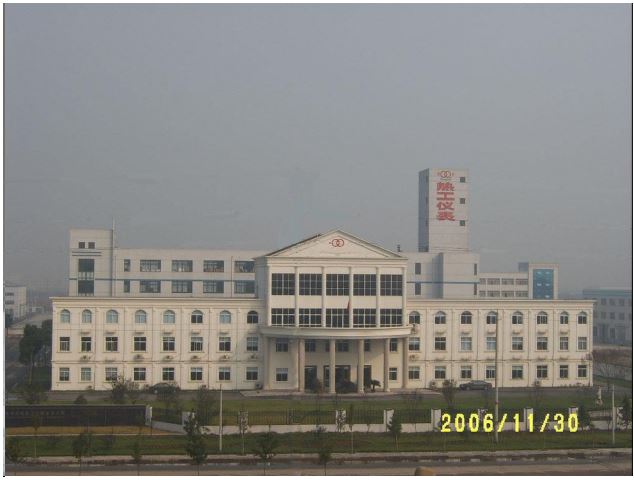

factory .jpg

Contact us:

Company Name:Xi'an CAMON Automatic Instrument Co.,Ltd

Contact Person:Tang Tang

Mobile Phone:+8615389295434

Tel:029-88243812

Fax:029-88241170

Post Code:710065




If you're interested in the chinese factory supply mechanical metal tube flow meter for normal or corrosive liquid in stock, welcome to wholesale the discount product with cheap price from our factory. It's of high accuracy and long durability. And as one of the leading manufacturers and suppliers, we also offer the customized service for you.
