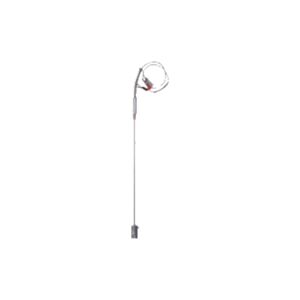

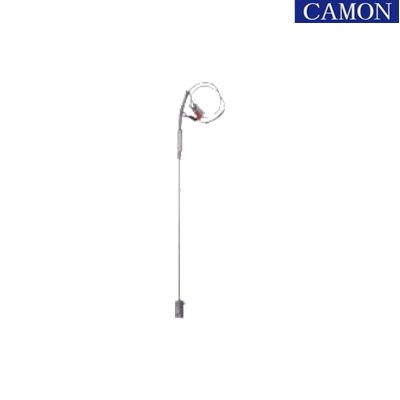

Boiler Cylinder Wall Temperature Sensor
Boiler wall temperature sensor is for measuring temperature of cylinder’s surface.
Chat Now Boiler Cylinder Wall Temperature Sensor Boiler wall temperature sensor is suitable for measuring temperature of boiler wall, pipe wall or other cylinder’s surface. Technical Reference Accuracy: I, II Pressure: normal pressure Bending Radius: R≥5D |
Models and Specification
| Model | Graduation | Measuring Range ℃ | Measuring End | Specification | |
| L | L1 | ||||
| CMWRNK-191M | K | 0~800 | Insulation Type | 1000 2000 3000 4000 5000 6000 8000 10000 15000 20000 25000 | 1000 2000 3000 4000 5000 6000 8000 10000 15000 20000 25000 |
| CMWREK-191M | E | 0~600 | |||
| CMWRNK-192M | K | 0~800 | Shell-connecting Type | ||
| CMWREK-192M | E | 0~60 | |||

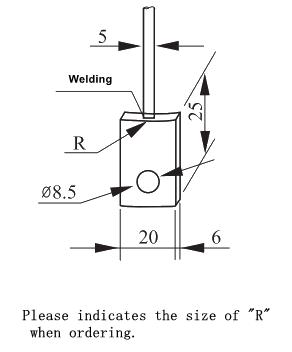

Mounting and Size Directly welded on boiler wall. Fastened by screw M8. |  |
