WSSX-301 bimetal thermometer
Xi'an Camon Automatic Instrument Co.,Ltd | Updated: Jul 21, 2017
WSSX-301 is one kind of bimetal thermometer as we mentioned in above artical.
Its temperature are -80~+40℃，-40~+80℃，0~100℃，0~150℃,0~200℃,0~300℃

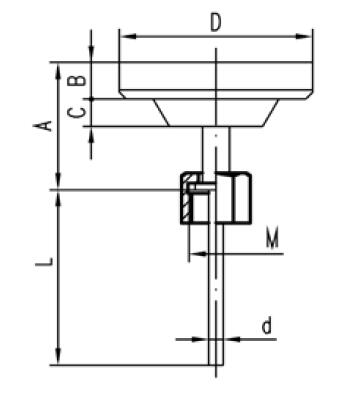

Outline drawing:
Installation Dimension:
| d | φ6 | ||
| L | 100，150，200 250，300 | ||
| M | M16×1.5 | ||
| A(mm) | 53 | ||
| B(mm) | 15 | ||
| C(mm) | 9 | ||
| D(mm) | φ67 |
