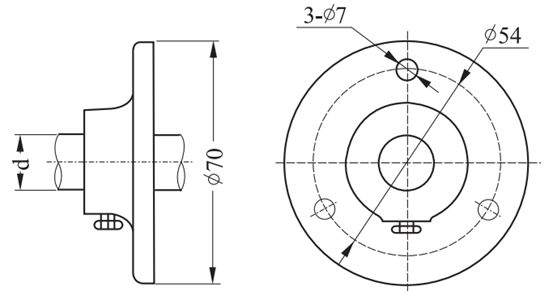

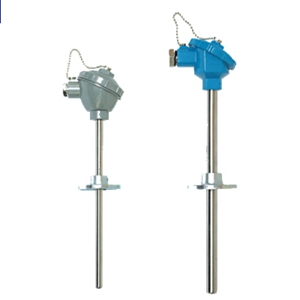

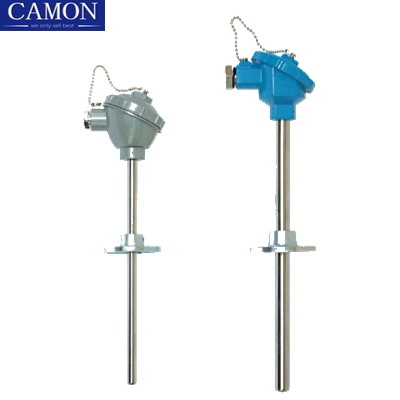

N Type Thermocouple With Flexible Flange Mounting
Flexible flange mounting thermocouple contains E,N,T,J,K types of thermocouple
Chat Now Thermoucouple with Flexible Flange Mounting Application The assembly series normally cooperates with displayer,recorder and computer,etc. to directly measure temperature of liquid,gas,steam and solid among 0℃~1300℃ during production process. Features 1.Convenient mounting and displacement. 2.Wide measuring range. 3.High mechanical strength and pressure-resistance ability. |
Measuring Range and Tolerance
| Model | Graduation | Tolerance | |||
| Value | Measuring Range ℃ | Vlaue | Measuring Range ℃ | ||
| CMWRN | K | ±1.5℃ | -40~+375 | ±2.5℃ | -40~+333 |
| ±0.004∣t∣ | 375~1000 | ±0.0075∣t∣ | 333~1200 | ||
| CMWRM | N | ±1.5℃ | -40~+375 | ±2.5℃ | -40~+333 |
| ±0.004∣t∣ | 375~1000 | ±0.0075∣t∣ | 333~1200 | ||
| CMWRE | E | ±1.5℃ | -40~+375 | ±1.5℃ | -40~+333 |
| ±0.004∣t∣ | 375~800 | ±0.004∣t∣ | 333~900 | ||
| CMWRF | J | ±1.5℃ | -40~+375 | ±1.5℃ | -40~+333 |
| ±0.004∣t∣ | 375~750 | ±0.004∣t∣ | 333~750 | ||
| CMWRC | T | ±1.5℃ | -40~+125 | ±1℃ | -40~+333 |
| ±0.004∣t∣ | 125~350 | ±0.0075∣t∣ | 133~350 | ||

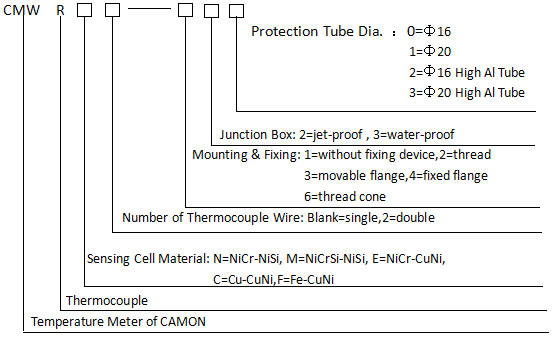

Ordering Code
Models and Specification
| Model | Graduation | Measuring Range ℃ | Thermal Response Time | Protection Tube Material | Dimension | |
| d | L×1 | |||||
| CMWRM-320 | N | 0~800 | <90s | 1Cr18Ni9Ti | Φ16 | 150 200 250 300 350 400 500 750 1000 1500 2000 2150 |
| CMWRM2-320 | 0~1000 | 0Cr25Ni20 | ||||
| CMWRM-330 | 0~800 | 1Cr18Ni9Ti | ||||
| CMWRM2-320 | 0~1000 | 0Cr25Ni20 | ||||
| CMWRN-320 | K | 0~800 | 1Cr18Ni9Ti | |||
| CMWRN2-320 | 0~1000 | 0Cr25Ni20 | ||||
| CMWRN-330 | 0~800 | 1Cr18Ni9Ti | ||||
| CMWRN2-330 | 0~1000 | 0Cr25Ni20 | ||||
| CMWRE-320 | E | 0~700 | 1Cr18Ni9Ti | |||
| CMWRE-330 | ||||||
| CMWRC-320 | T | 0~350 | 1Cr18Ni9Ti | |||
| CMWRC-330 | ||||||
| CMWRF-320 | J | 0~600 | 1Cr18Ni9Ti | |||
| CMWRF-330 | ||||||
| CMWRM-321 | N | 0~800 | <120s | 1Cr18Ni9Ti | Φ20 | |
| CMWRM2-321 | 0~1000 | 0Cr25Ni20 | ||||
| CMWRM-331 | 0~800 | 1Cr18Ni9Ti | ||||
| CMWRM2-331 | 0~1000 | 0Cr25Ni20 | ||||
| CMWRN-321 | K | 0~800 | 1Cr18Ni9Ti | |||
| CMWRN2-321 | 0~1000 | 0Cr25Ni20 | ||||
| CMWRN-331 | 0~800 | 1Cr18Ni9Ti | ||||
| CMWRN2-331 | 0~1000 | 0Cr25Ni20 | ||||
| CMWRE-321 | E | 0~700 | 1Cr18Ni9Ti | |||
| CMWRE-331 | ||||||
| CMWRC-321 | T | 0~350 | 1Cr18Ni9Ti | |||
| CMWRC-331 | ||||||
| CMWRF-321 | J | 0~600 | 1Cr18Ni9Ti | |||
| CMWRF-331 | ||||||
