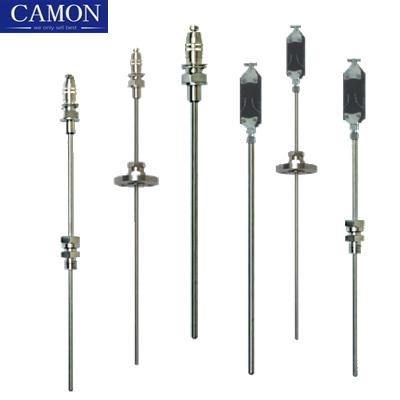

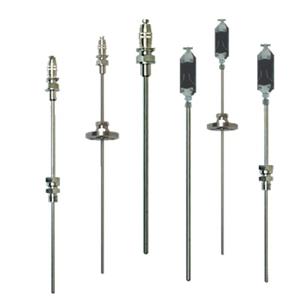

High Temp Plug Socket Thermocouple
High temp thermocouple plug socket series contains round plug-in thermocouple and flat plug-in thermocouple.
Chat Now High Temp Plug Socket Thermocouple High temp thermocouple plug socket type eries normally cooperates with display instrument,recorder and computer,etc. to directly measure temperature of liquid,gas,steam and solid among 0℃~1300℃ during production process. The plug socket type contains two sub-divisions, round plug-in thermocouple and flat plug-in thermocouple. Features 1.Less thermal response time, reduce dynamic error. 2.Can bending mount 3.Wide measuring range. 4.High mechanical strength and pressure-resistance ability. |

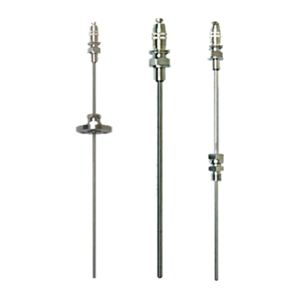

Round Plug-in Type |

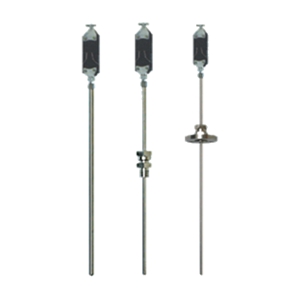

Flat Plug-in Type |
Measuring Range and Tolerance
| Model | Graduation | Tolerance | |||
| I | II | ||||
Value ℃ | Measuring Range ℃ | Value ℃ | Measuring Range ℃ | ||
| CMWRNK | K | ±1.5 | -40~+375 | ±2.5 | -40~+333 |
| ±0.004ItI | 375~1000 | ±0.0075ItI | 333~1200 | ||
| CMWRMK | N | ±1.5 | -40~+375 | ±2.5 | -40~+333 |
| ±0.004ItI | 375~1000 | ±0.0075ItI | 333~1200 | ||
| CMWREK | E | ±1.5 | -40~+375 | ±1.5 | -40~+333 |
| ±0.004ItI | 375~800 | ±0.004ItI | 333~900 | ||
| CMWRFK | J | ±1.5 | -40~+375 | ±1.5 | -40~+333 |
| ±0.004ItI | 375~750 | ±0.004ItI | 333~750 | ||
| CMWRCK | T | ±1.5 | -40~+125 | ±1 | -40~+333 |
| ±0.004ItI | 125~350 | ±0.0075ItI | 133~350 | ||
| CMWRPK | S | ±1 | 0~1000 | ±2.5 | 0~600 |
| ±〔0.003(t-1100)〕 | 1100~1600 | ±0.0025ItI | 600~1600 | ||
Insulation Resistance at Normal Temperature
The insulation resistance between electrode and protection tube is no less than 1000MΩ.m when environment temperature is 20±15℃,relative humidity is no more than 80% and test voltage is 500±50V(DC).
